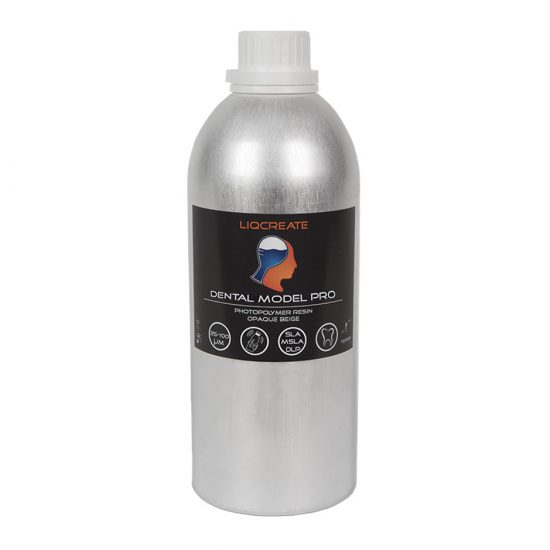

Dental Model Pro Beige
1 000,00 zł
Liqcreate Dental Model Pro Beige is a matte, opaque beige colored photopolymer. This resin is perfect for manufacturing highly accurate dental models, dies and aligner models.
Liqcreate Dental Model Pro Beige is easy to use on open SLA, MSLA and DLP 3D-printers in the range of 385 – 420nm. This material has excellent properties like low shrinkage and low odor, accuracy and dimensional stability, making it perfect for the production of dental models, C&B, thermoforming and aligner models.
Technical specifications
Liqcreate Dental Model Pro Beige is a matte, opaque beige colored photopolymer compatible with SLA, MSLA and DLP 3D-printers in the range of 385 – 420nm. This material has excellent properties like low shrinkage and low odor, accuracy and dimensional stability, making it perfect for the production of dental models, C&B, thermoforming and aligner models.
| Mechanical Properties | 30 minutes high power LED curing at 40°C[1] | ||
|---|---|---|---|
| Description | Method | Metric | Imperial |
| Tensile strength | D638 | 37 MPa | 5.4 ksi |
| Tensile modulus | D638 | 1.9 GPa | 276 ksi |
| Elongation at break | D638 | 4.8% | 4.8% |
| Flexural strength | D790 | 64 MPa | 9.3 ksi |
| Flexural modulus | D790 | 1.7 GPa | 247 ksi |
| Shore D Hardness | D2240 | 85 | 85 |
| Water sorption | D570-98 | 0.37% | 0.37% |
| Linear shrinkage during printing | Internal method | 0.3% | 0.3% |
| Linear shrinkage during UV-curing | Internal method | 0.4% | 0.4% |
| Degradation temperature | Internal method | 250°C[2] | 482°F[2] |
[1]Post-cured 30 minutes with LED curing at 40°C in the Wicked Engineering Curebox. These values may vary and depend on individual machine processing and post-curing. [2]Discoloration at 160°C, no signs of cracks in post-cured parts up to 250°C / 482°F.
| Description | Value |
|---|---|
| Appearance | Opaque beige liquid |
| Viscosity | 700 cps at 25°C |
| Density | 1.18 g/cm3 |
| Ec (405nm) | 4.29 mJ/cm2 |
| Dp (405nm) | 0.12 mm |
| Ec (385nm) | 2.33 mJ/cm2 |
| Dp (385nm) | 0.07 mm |
| Waga | 1 kg, 6 x 1 kg, 250 gr |
|---|
